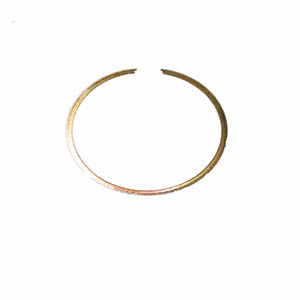

54.75 – 55.05mm Yamaha KT100 Big Bore Pistons & Rings – Big bore piston kits available for the Yamaha KT100SE ranging from 54.75mm to 55.05mm to achieve 108cc+ displacement out of the engine. The kits come complete with the piston, ring, pin and clips. These piston kits can also be used in other various engines utilizing the 14mm wrist pin but may require a spacer between the cylinder and cases or other machine work

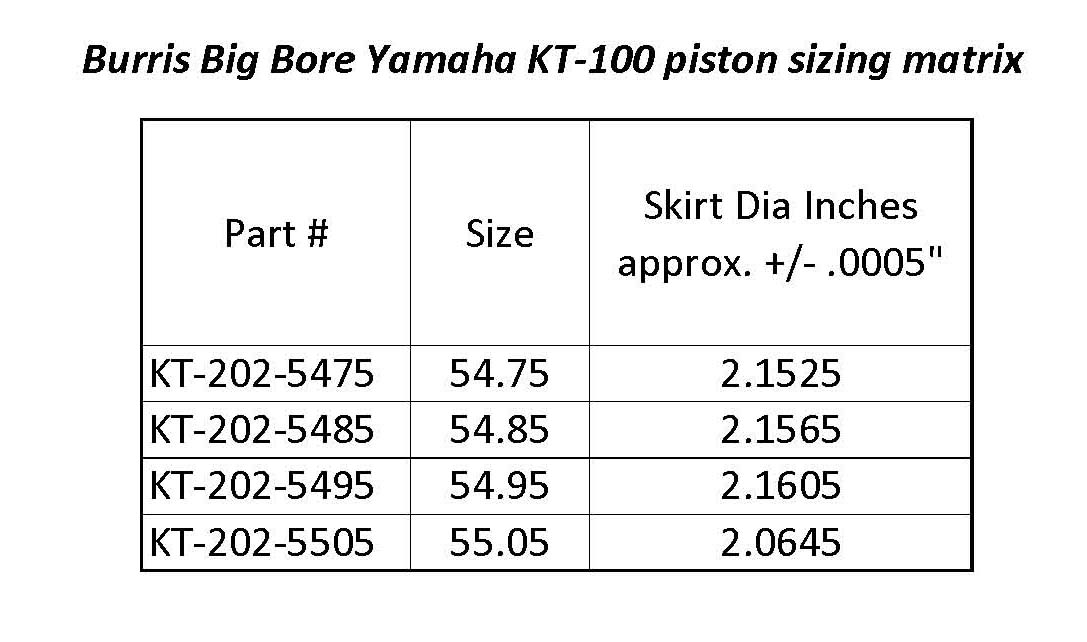

Piston dimension references:

54.75mm to 55.05mm diameter

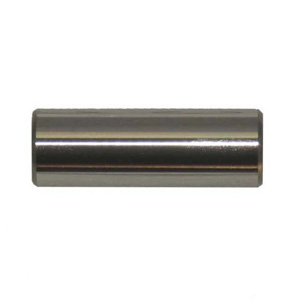

14mm wrist pin

59.5mm +/- overall height

26.5mm +/- from wrist pin C/L to top of dome

23mm +/- from wrist pin C/L to controlling edge of dome
